304
Stainless Steel butt-weld Tee
Control Pipe Directional Flow for Plumbing Jobs, Repair, and more. These tees are used to combine or split a fluid flow.Tees are available in a variety of connection types, sizes and package quantities. Choose from several trusted brand names.
What We Can Offer ?
90 ℃ LR/SR Elbow | 45 ℃ LR Elbow | Concentric Reducer | Eccentric Reducer |
Equal Cross | Equal Tee | Reducer Tee | End Cap |
Manufacturing Standards of Buttweld Fittings
ASME: | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
EN: | EN10253-1, EN10253-2 |
ASTM A403/ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
ASME B16.25 | Buttwelding Ends |
ASME B16.28 | Wrought Steel Short Radius Elbows and Buttwelding Returns |
MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Buttweld Pipe Elbow Material Grades
Stainless Steel | ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
Alloy Steel | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
Duplex Steel | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
Nickel Alloy | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
We are ISO 9001:2008 certified company with more than 20 years steel experience & have exported to countries such as Argentina, Australia, Canada , Chile, Mexico , Colombia, Denark , Norway, Finland, Germany, UAE, France, Vietnam, Brazil, America, Hungary, Sri Lanka, Malaysia, Saudi Arabia, Thailand, Indonesia, India, Iraq, Kuwait , Isreal, Lebanon,Morocco, Iran, Taiwan, Singapore, Qatar, Japan, Spain, Italy, Peru, South Korea, Turkey,Russia ,Philippines, Rome, England etc.
If there is any questions , pls do not hesitate to contact us !
Mr.Jim
Mobile/Wechat : +86 15902911689
Email : info@yklsteel.com
Stainless Steel butt-weld Tee
Control Pipe Directional Flow for Plumbing Jobs, Repair, and more. These tees are used to combine or split a fluid flow.Tees are available in a variety of connection types, sizes and package quantities. Choose from several trusted brand names.
What We Can Offer ?
90 ℃ LR/SR Elbow | 45 ℃ LR Elbow | Concentric Reducer | Eccentric Reducer |
Equal Cross | Equal Tee | Reducer Tee | End Cap |
Manufacturing Standards of Buttweld Fittings
ASME: | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
EN: | EN10253-1, EN10253-2 |
ASTM A403/ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
ASME B16.25 | Buttwelding Ends |
ASME B16.28 | Wrought Steel Short Radius Elbows and Buttwelding Returns |
MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Buttweld Pipe Elbow Material Grades
Stainless Steel | ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
Alloy Steel | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
Duplex Steel | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
Nickel Alloy | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
We are ISO 9001:2008 certified company with more than 20 years steel experience & have exported to countries such as Argentina, Australia, Canada , Chile, Mexico , Colombia, Denark , Norway, Finland, Germany, UAE, France, Vietnam, Brazil, America, Hungary, Sri Lanka, Malaysia, Saudi Arabia, Thailand, Indonesia, India, Iraq, Kuwait , Isreal, Lebanon,Morocco, Iran, Taiwan, Singapore, Qatar, Japan, Spain, Italy, Peru, South Korea, Turkey,Russia ,Philippines, Rome, England etc.
If there is any questions , pls do not hesitate to contact us !
Mr.Jim
Mobile/Wechat : +86 15902911689
Email : info@yklsteel.com
ANSI/ASME B16.9 TEE DIMENSIONS
Buttweld Equal Tee Dimensions Chart
Nominal Pipe Size | Outside diameter | Center-to-End | |
Run (C) | Outlet(M) | ||
1/2″ | 21.3 | 25 | 25 |
3/4″ | 26.7 | 29 | 29 |
1″ | 33.4 | 38 | 38 |
1 1/4″ | 42.2 | 48 | 48 |
1 1/2″ | 48.3 | 57 | 57 |
2″ | 60.3 | 64 | 64 |
2 1/2″ | 73.0 | 76 | 76 |
3″ | 88.9 | 86 | 86 |
3 1/2″ | 101.6 | 95 | 95 |
4″ | 114.3 | 105 | 105 |
5″ | 141.3 | 124 | 124 |
6″ | 168.3 | 143 | 143 |
8″ | 219.1 | 178 | 178 |
10″ | 273.0 | 216 | 216 |
12″ | 323.8 | 254 | 254 |
14″ | 355.6 | 279 | 279 |
16″ | 406.4 | 305 | 305 |
18″ | 457.0 | 343 | 343 |
20″ | 508.0 | 381 | 381 |
22″ | 559.0 | 419 | 419 |
24″ | 610.0 | 432 | 432 |
The dimensions are in millimeters
Source : ASME B16.9 – 2007
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.

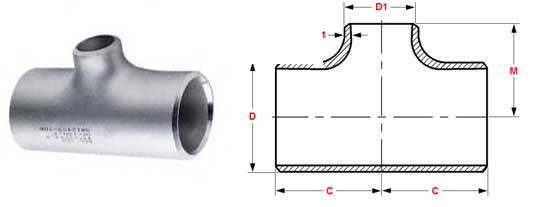

Buttweld Reducing Tee Dimensions
Nominal Pipe Size | Outside diameter | Center-to-End | |||
Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
1/2″ | 1/4″ | 21.3 | 13.7 | 25 | 25 |
3/4″ | 3/8″ | 26.7 | 17.3 | 29 | 29 |
1″ | 1/2″ | 33.4 | 21.3 | 38 | 38 |
1 1/4″ | 1/2″ | 42.2 | 21.3 | 48 | 48 |
1 1/2″ | 1/2″ | 48.3 | 21.3 | 57 | 57 |
2″ | 3/4″ | 60.3 | 26.7 | 64 | 44 |
2 1/2″ | 1″ | 73.0 | 33.4 | 76 | 57 |
3″ | 1 1/4″ | 88.9 | 42.2 | 86 | 70 |
3 1/2″ | 1 1/2″ | 101.6 | 48.3 | 95 | 79 |
4″ | 1 1/2″ | 114.3 | 48.3 | 105 | 86 |
5″ | 2″ | 141.3 | 60.3 | 124 | 105 |
6″ | 2 1/2″ | 168.3 | 73.0 | 143 | 121 |
8″ | 3 1/2″ | 219.1 | 101.6 | 178 | 152 |
10″ | 4″ | 273.0 | 114.3 | 216 | 184 |
12″ | 5″ | 323.8 | 141.3 | 254 | 216 |
14″ | 6″ | 355.6 | 168.3 | 279 | 238 |
16″ | 6″ | 406.4 | 168.3 | 305 | 264 |
18″ | 8″ | 457.0 | 219.1 | 343 | 298 |
20″ | 8″ | 508.0 | 219.1 | 381 | 324 |
22″ | 10″ | 559.0 | 273.0 | 419 | 359 |
24″ | 10″ | 610.0 | 273.0 | 432 | 384 |
The dimensions are in millimeters
Source : ASME B16.9 – 2018
ASME B16.9 Lateral Tee Dimensions
Nominal | TYPE | Outside | STD | X – S | NPS | ||||||
E & L | D | T | ID | E & L | D | T | ID | ||||
1 | B | 1.315 | 5.75 | 1.75 | 0.133 | 1.049 | 6.50 | 2.00 | 0.179 | 0.957 | 1 |
2 | A/B | 2.375 | 8.00 | 2.50 | 0.154 | 2.067 | *8.00 | 2.50 | 0.128 | 1.939 | 2 |
3½ | B | 4.000 | 11.50 | 3.00 | 0.226 | 3.548 | 12.50 | 3.00 | 0.318 | 3.364 | 3½ |
6 | A/B | 6.625 | 14.50 | 3.50 | 0.280 | 6.065 | *14.50 | *3.50 | 0.432 | 5.761 | 6 |
12 | B | 12.750 | 24.50 | 5.50 | 0.375 | 12.000 | 27.50 | 6.00 | 0.500 | 11.750 | 12 |
18 | B | 18.000 | 32.00 | 7.00 | 0.375 | 17.250 | 37.50 | 8.00 | 0.500 | 17.000 | 18 |
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
DIMENSIONAL TOLERANCES OF ASME B16.9 STRAIGHT TEES
Nominal Pipe Size | 1/2 to 2.1/2 | 3 to 3.1/2 | 4 | 5 to 8 | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
Outside Dia | +1.6 | 1.6 | 1.6 | +2.4 | +4 | +6.4 | +6.4 | +6.4 |
Inside Dia at End | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 | +6.4 | +6.4 |
Center to End (C / M) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
Wall Thk (t) | Not less than 87.5% of Nominal Wall Thickness |
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
Straight Tee Weight Chart, Reducing Tee Weight in Kg
Sch STD | Sch XS | |||
NPS | LBS | KG | LBS | KG |
1/2 | 0.35 | 0.16 | 0.45 | 0.2 |
3/4 | 0.45 | 0.2 | 0.6 | 0.27 |
1 | 0.75 | 0.34 | 0.88 | 0.4 |
1.1/4 | 1.3 | 0.59 | 1.6 | 0.73 |
1.1/2 | 2 | 0.91 | 2.25 | 1.02 |
2 | 3.5 | 1.59 | 4 | 1.81 |
2.1/2 | 6 | 2.72 | 7 | 3.18 |
3 | 7 | 3.18 | 8.5 | 3.86 |
3.1/2 | 9 | 4.08 | 12 | 5.44 |
4 | 12 | 5.44 | 15.8 | 7.17 |
5 | 21 | 9.53 | 26 | 11.79 |
6 | 34 | 15.42 | 40 | 18.14 |
8 | 55 | 24.95 | 75 | 34.02 |
10 | 85 | 38.56 | 105 | 47.63 |
12 | 120 | 54.43 | 160 | 72.57 |
14 | 165 | 74.84 | 240 | 108.86 |
16 | 195 | 88.45 | 280 | 127.01 |
18 | 249 | 112.94 | 332 | 150.59 |
20 | 342 | 155.13 | 480 | 217.72 |
22 | 414 | 187.79 | 550 | 249.48 |
24 | 528 | 239.5 | 610 | 276.69 |
26 | 770 | 349.27 | 875 | 396.89 |
30 | 1060 | 480.81 | 1200 | 544.31 |
36 | 1490 | 675.85 | 1700 | 771.11 |
NPS | LBS | KG | LBS | KG |
Weights Straight Tees Schedule 160
NPS | LBS | KG |
1/2 | 0.36 | 0.16 |
3/4 | 0.58 | 0.26 |
1 | 1 | 0.45 |
1.1/4 | 2 | 0.91 |
1.1/2 | 3 | 1.36 |
2 | 5 | 2.27 |
2.1/2 | 8 | 3.63 |
3 | 10 | 4.54 |
3.1/2 | – | – |
4 | 25 | 11.34 |
5 | 55 | 24.95 |
6 | 62 | 28.12 |
8 | 110 | 49.9 |
10 | 260 | 117.93 |
12 | 480 | 217.72 |
NPS | LBS | KG |
ANSI/ASME B16.9 TEE DIMENSIONS
Buttweld Equal Tee Dimensions Chart
Nominal Pipe Size | Outside diameter | Center-to-End | |
Run (C) | Outlet(M) | ||
1/2″ | 21.3 | 25 | 25 |
3/4″ | 26.7 | 29 | 29 |
1″ | 33.4 | 38 | 38 |
1 1/4″ | 42.2 | 48 | 48 |
1 1/2″ | 48.3 | 57 | 57 |
2″ | 60.3 | 64 | 64 |
2 1/2″ | 73.0 | 76 | 76 |
3″ | 88.9 | 86 | 86 |
3 1/2″ | 101.6 | 95 | 95 |
4″ | 114.3 | 105 | 105 |
5″ | 141.3 | 124 | 124 |
6″ | 168.3 | 143 | 143 |
8″ | 219.1 | 178 | 178 |
10″ | 273.0 | 216 | 216 |
12″ | 323.8 | 254 | 254 |
14″ | 355.6 | 279 | 279 |
16″ | 406.4 | 305 | 305 |
18″ | 457.0 | 343 | 343 |
20″ | 508.0 | 381 | 381 |
22″ | 559.0 | 419 | 419 |
24″ | 610.0 | 432 | 432 |
The dimensions are in millimeters
Source : ASME B16.9 – 2007
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
Buttweld Reducing Tee Dimensions
Nominal Pipe Size | Outside diameter | Center-to-End | |||
Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
1/2″ | 1/4″ | 21.3 | 13.7 | 25 | 25 |
3/4″ | 3/8″ | 26.7 | 17.3 | 29 | 29 |
1″ | 1/2″ | 33.4 | 21.3 | 38 | 38 |
1 1/4″ | 1/2″ | 42.2 | 21.3 | 48 | 48 |
1 1/2″ | 1/2″ | 48.3 | 21.3 | 57 | 57 |
2″ | 3/4″ | 60.3 | 26.7 | 64 | 44 |
2 1/2″ | 1″ | 73.0 | 33.4 | 76 | 57 |
3″ | 1 1/4″ | 88.9 | 42.2 | 86 | 70 |
3 1/2″ | 1 1/2″ | 101.6 | 48.3 | 95 | 79 |
4″ | 1 1/2″ | 114.3 | 48.3 | 105 | 86 |
5″ | 2″ | 141.3 | 60.3 | 124 | 105 |
6″ | 2 1/2″ | 168.3 | 73.0 | 143 | 121 |
8″ | 3 1/2″ | 219.1 | 101.6 | 178 | 152 |
10″ | 4″ | 273.0 | 114.3 | 216 | 184 |
12″ | 5″ | 323.8 | 141.3 | 254 | 216 |
14″ | 6″ | 355.6 | 168.3 | 279 | 238 |
16″ | 6″ | 406.4 | 168.3 | 305 | 264 |
18″ | 8″ | 457.0 | 219.1 | 343 | 298 |
20″ | 8″ | 508.0 | 219.1 | 381 | 324 |
22″ | 10″ | 559.0 | 273.0 | 419 | 359 |
24″ | 10″ | 610.0 | 273.0 | 432 | 384 |
The dimensions are in millimeters
Source : ASME B16.9 – 2018
ASME B16.9 Lateral Tee Dimensions
Nominal | TYPE | Outside | STD | X – S | NPS | ||||||
E & L | D | T | ID | E & L | D | T | ID | ||||
1 | B | 1.315 | 5.75 | 1.75 | 0.133 | 1.049 | 6.50 | 2.00 | 0.179 | 0.957 | 1 |
2 | A/B | 2.375 | 8.00 | 2.50 | 0.154 | 2.067 | *8.00 | 2.50 | 0.128 | 1.939 | 2 |
3½ | B | 4.000 | 11.50 | 3.00 | 0.226 | 3.548 | 12.50 | 3.00 | 0.318 | 3.364 | 3½ |
6 | A/B | 6.625 | 14.50 | 3.50 | 0.280 | 6.065 | *14.50 | *3.50 | 0.432 | 5.761 | 6 |
12 | B | 12.750 | 24.50 | 5.50 | 0.375 | 12.000 | 27.50 | 6.00 | 0.500 | 11.750 | 12 |
18 | B | 18.000 | 32.00 | 7.00 | 0.375 | 17.250 | 37.50 | 8.00 | 0.500 | 17.000 | 18 |
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
DIMENSIONAL TOLERANCES OF ASME B16.9 STRAIGHT TEES
Nominal Pipe Size | 1/2 to 2.1/2 | 3 to 3.1/2 | 4 | 5 to 8 | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
Outside Dia | +1.6 | 1.6 | 1.6 | +2.4 | +4 | +6.4 | +6.4 | +6.4 |
Inside Dia at End | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 | +6.4 | +6.4 |
Center to End (C / M) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
Wall Thk (t) | Not less than 87.5% of Nominal Wall Thickness |
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
Straight Tee Weight Chart, Reducing Tee Weight in Kg
Sch STD | Sch XS | |||
NPS | LBS | KG | LBS | KG |
1/2 | 0.35 | 0.16 | 0.45 | 0.2 |
3/4 | 0.45 | 0.2 | 0.6 | 0.27 |
1 | 0.75 | 0.34 | 0.88 | 0.4 |
1.1/4 | 1.3 | 0.59 | 1.6 | 0.73 |
1.1/2 | 2 | 0.91 | 2.25 | 1.02 |
2 | 3.5 | 1.59 | 4 | 1.81 |
2.1/2 | 6 | 2.72 | 7 | 3.18 |
3 | 7 | 3.18 | 8.5 | 3.86 |
3.1/2 | 9 | 4.08 | 12 | 5.44 |
4 | 12 | 5.44 | 15.8 | 7.17 |
5 | 21 | 9.53 | 26 | 11.79 |
6 | 34 | 15.42 | 40 | 18.14 |
8 | 55 | 24.95 | 75 | 34.02 |
10 | 85 | 38.56 | 105 | 47.63 |
12 | 120 | 54.43 | 160 | 72.57 |
14 | 165 | 74.84 | 240 | 108.86 |
16 | 195 | 88.45 | 280 | 127.01 |
18 | 249 | 112.94 | 332 | 150.59 |
20 | 342 | 155.13 | 480 | 217.72 |
22 | 414 | 187.79 | 550 | 249.48 |
24 | 528 | 239.5 | 610 | 276.69 |
26 | 770 | 349.27 | 875 | 396.89 |
30 | 1060 | 480.81 | 1200 | 544.31 |
36 | 1490 | 675.85 | 1700 | 771.11 |
NPS | LBS | KG | LBS | KG |
Weights Straight Tees Schedule 160
NPS | LBS | KG |
1/2 | 0.36 | 0.16 |
3/4 | 0.58 | 0.26 |
1 | 1 | 0.45 |
1.1/4 | 2 | 0.91 |
1.1/2 | 3 | 1.36 |
2 | 5 | 2.27 |
2.1/2 | 8 | 3.63 |
3 | 10 | 4.54 |
3.1/2 | – | – |
4 | 25 | 11.34 |
5 | 55 | 24.95 |
6 | 62 | 28.12 |
8 | 110 | 49.9 |
10 | 260 | 117.93 |
12 | 480 | 217.72 |
NPS | LBS | KG |
Package in Pallet or Plywood box
