Stainless Steel End Cap

are the pipe fittings, which are mainly used as a plug to cover the end of a pipe. We can supply pipe end caps in standard sizes, as well as in accordance with a specification of our customers as per internaional standards., includes 304/304L, 316/316L, 321, 347, 317L, 310S, 904L, Duplex, Alloy 201, Alloy 800H, Alloy C276, Cupro Nickel, Alloy 400, Alloy 625 and Alloy 600. Our stocking program includes stainless steel pipe caps and carbon steel pipe caps of standard sizes and grades. Our specialty is to offer our customers with pipe caps in various shapes – round, square, rectangular or other special shapes.

Availability:

Quantity:



Inquire Add to Basket

Model:
304

Stainless Steel End Cap

is a type of pipe fitting that covers the end of a pipe. Since it can have female threads, it can screw on to the male end of the pipe. It can also be welded on to close the end of the pipe.

What We Can Offer ?


90 ℃ LR/SR Elbow	45 ℃ LR Elbow	Concentric Reducer	Eccentric Reducer

Equal Cross	Equal Tee	Reducer Tee	End Cap

Manufacturing Standards of Buttweld Fittings

ASME:	ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN:	DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN:	EN10253-1, EN10253-2

ASTM A403/ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9	Factory-Made Wrought Fittings Buttwelding
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Buttweld Pipe Elbow Material Grades

Stainless Steel	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Alloy Steel	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

We are ISO 9001:2008 certified company with more than 20 years steel experience & have exported to countries such as Argentina, Australia, Canada , Chile, Mexico , Colombia, Denark , Norway, Finland, Germany, UAE, France, Vietnam, Brazil, America, Hungary, Sri Lanka, Malaysia, Saudi Arabia, Thailand, Indonesia, India, Iraq, Kuwait , Isreal, Lebanon,Morocco, Iran, Taiwan, Singapore, Qatar, Japan, Spain, Italy, Peru, South Korea, Turkey,Russia ,Philippines, Rome, England etc.

If there is any questions , pls do not hesitate to contact us !

Mr.Jim

Mobile/Wechat : +86 15902911689

Email : info@yklsteel.com

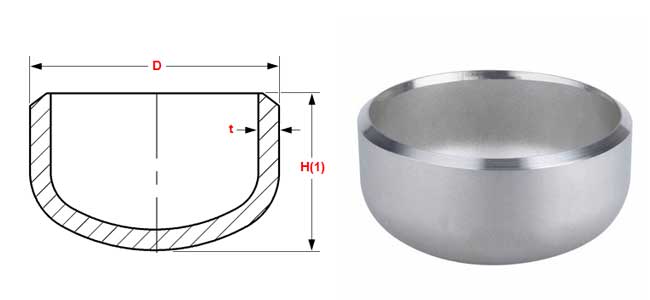

ANSI/ASME B16.9 PIPE END CAP DIMENSIONS

Pipe Cap Dimension chart

pipe-end-cap-dimensions

NPS	O.D. D	LENGTH H	LENGTH H1
1/2	21.3	25	25
3/4	26.7	25	25
1	33.4	38	38
1.1/4	42.2	38	38
1.1/2	48.3	38	38
2	60.3	38	44
2.1/2	73	38	51
3	88.9	51	64
3.1/2	101.6	64	76
4	114.3	64	76
5	141.3	76	89
6	168.3	89	102
8	219.1	102	127
10	273	127	152
12	323.8	152	178
14	355.6	165	191
16	406.4	178	203
18	457	203	229
20	508	229	254
22	559	254	254
24	610	267	305
26	660	267	…
28	711	267	…
30	762	267	…
32	813	267	…
34	864	237	…
36	914	267	…
38	965	305	…
40	1016	305	…
42	1067	305	…
44	1118	343	…
46	1168	343	…
48	1219	343	…

The dimensions are in millimeters

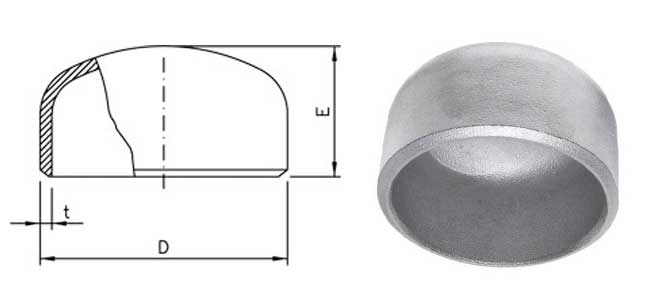

ANSI B16.9 Pipe End Dimensions

pipe-end-dimensions

CAPS – ANSI B 16.9 dimension
inches	mm	Height
inches	mm	D	E
1/2	15	21,34	25,40
3/4	20	26,67	31,75
	25	33,40	38,10
1 1/4	32	42,16	38,10
1 1/2	40	48,26	38,10
2	50	60,32	38,10
2 1/2	65	73,02	38,10
3	80	88,90	50,80
3 1/2	90	101,60	63,50
4	100	114,30	63,50
5	125	141,30	76,20
6	150	168,27	88,90
8	200	219,07	101,60
10	250	273,05	127,00
12	300	323,85	152,40
14	350	355,60	165,10
16	400	406,40	177,80
18	450	457,20	203,20
20	500	508,00	228,60
22	550	558,80	254,00
24	600	609,60	266,70
28	700	711,20	266,70
Dimension in mm

ANSI B16.9 PIPE ENDS – Dimensional tolerances

DIMENSIONAL TOLERANCES – CAPS
For all fittings				Caps
Nominal Pipe Size (NPS)	Outside Ø at Bevel	Inside Ø at End	Wall Thickness t / t1	Overall Length E
1/2 a 2 1/2	1	0,8	Not	4
3 a 3 1/2	1	1,6	less	4
4	+2 -1	1,6	than	4
5 a 6	+3 -1	1,6	87,50%	7
8	2	1,6	of nominal	7
10	+4 -3	3,2	tickness	7
12 a 18	+4 -3	3,2		7
20 a 24	+6 -5	4,8		7
26 a 30	+7 -5	4,8		10
32 a 48	+7 -5	4,8		10

BUTTWELD PIPE CAP WEIGHT

NPS	STD	XS	SCH 160	XXS
1	0.09	0.14	0.18	0.23
1.1/4	0.14	0.18	0.23	0.34
1.1/2	0.18	0.23	0.27	0.41
2	0.27	0.34	0.57	0.68
2.1/2	0.41	0.45	0.79	1.13
3	0.68	0.79	1.32	1.81
3.1/2	0.91	1.13	–	2.72
4	1.13	1.36	2.68	3.4
5	2.04	2.49	4.54	5.44
6	2.95	4.08	6.8	8.16
8	5.44	7.26	14.06	13.61
10	9.07	11.34	25.85	–
12	13.61	16.33	43.09	–
14	16.33	20.41	–	–
16	18.14	24.49	–	–
18	24.49	32.66	–	–
20	34.02	39.01	–	–
22	42.64	56.7	–	–
24	43.54	58.97	–	–
26	53.98	72.12	–	–
30	78.02	103.87	–	–
NPS	STD	XS	SCH 160	XXS
