304
Stainless Steel butt-weld Cross
We can supply pipe cross in two types namely, straight cross and reducing cross in a complete range of shapes and dimensions. We are a leading supplier of stainless steel cross tee and alloy steel cross tee to domestic customers and international customers in various industries such as oil and gas, petrochemical, power generation, pharmaceuticals, paper manufacturing, natural gas industry and chemical plants. Cross is used in many applications, as a junction for intersecting pipes.
What We Can Offer ?
90 ℃ LR/SR Elbow | 45 ℃ LR Elbow | Concentric Reducer | Eccentric Reducer |
Equal Cross | Equal Tee | Reducer Tee | End Cap |
Manufacturing Standards of Buttweld Fittings
ASME: | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
EN: | EN10253-1, EN10253-2 |
ASTM A403/ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
ASME B16.25 | Buttwelding Ends |
ASME B16.28 | Wrought Steel Short Radius Elbows and Buttwelding Returns |
MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Buttweld Pipe Elbow Material Grades
Stainless Steel | ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
Alloy Steel | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
Duplex Steel | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
Nickel Alloy | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
We are ISO 9001:2008 certified company with more than 20 years steel experience & have exported to countries such as Argentina, Australia, Canada , Chile, Mexico , Colombia, Denark , Norway, Finland, Germany, UAE, France, Vietnam, Brazil, America, Hungary, Sri Lanka, Malaysia, Saudi Arabia, Thailand, Indonesia, India, Iraq, Kuwait , Isreal, Lebanon,Morocco, Iran, Taiwan, Singapore, Qatar, Japan, Spain, Italy, Peru, South Korea, Turkey,Russia ,Philippines, Rome, England etc.
If there is any questions , pls do not hesitate to contact us !
Mr.Jim
Mobile/Wechat : +86 15902911689
Email : info@yklsteel.com
Stainless Steel butt-weld Cross
We can supply pipe cross in two types namely, straight cross and reducing cross in a complete range of shapes and dimensions. We are a leading supplier of stainless steel cross tee and alloy steel cross tee to domestic customers and international customers in various industries such as oil and gas, petrochemical, power generation, pharmaceuticals, paper manufacturing, natural gas industry and chemical plants. Cross is used in many applications, as a junction for intersecting pipes.
What We Can Offer ?
90 ℃ LR/SR Elbow | 45 ℃ LR Elbow | Concentric Reducer | Eccentric Reducer |
Equal Cross | Equal Tee | Reducer Tee | End Cap |
Manufacturing Standards of Buttweld Fittings
ASME: | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
EN: | EN10253-1, EN10253-2 |
ASTM A403/ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
ASME B16.25 | Buttwelding Ends |
ASME B16.28 | Wrought Steel Short Radius Elbows and Buttwelding Returns |
MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Buttweld Pipe Elbow Material Grades
Stainless Steel | ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
Alloy Steel | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
Duplex Steel | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
Nickel Alloy | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
We are ISO 9001:2008 certified company with more than 20 years steel experience & have exported to countries such as Argentina, Australia, Canada , Chile, Mexico , Colombia, Denark , Norway, Finland, Germany, UAE, France, Vietnam, Brazil, America, Hungary, Sri Lanka, Malaysia, Saudi Arabia, Thailand, Indonesia, India, Iraq, Kuwait , Isreal, Lebanon,Morocco, Iran, Taiwan, Singapore, Qatar, Japan, Spain, Italy, Peru, South Korea, Turkey,Russia ,Philippines, Rome, England etc.
If there is any questions , pls do not hesitate to contact us !
Mr.Jim
Mobile/Wechat : +86 15902911689
Email : info@yklsteel.com

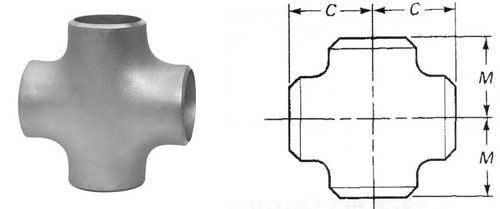

ANSI/ASME B16.9 BUTTWELD EQUAL CROSS DIMENSIONS
Buttweld Cross Dimensions Chart
Nominal Pipe Size (NPS) | DN | Outside Diameter at Bevel | Center- to-End | |
Run.C | Outlet. M[Notes(1) and (2)] | |||
1/2 | 15 | 21.3 | 25 | 25 |
3/4 | 20 | 26.7 | 29 | 29 |
1 | 25 | 33.4 | 38 | 38 |
1-1/4 | 32 | 42.2 | 48 | 48 |
1-1/2 | 40 | 48.3 | 57 | 57 |
2 | 50 | 60.3 | 64 | 64 |
2-1/2 | 65 | 73.0 | 76 | 76 |
3 | 80 | 88.9 | 86 | 86 |
3-1/2 | 90 | 101.6 | 95 | 95 |
4 | 100 | 114.3 | 105 | 105 |
5 | 125 | 141.3 | 124 | 124 |
6 | 150 | 168.3 | 143 | 143 |
8 | 200 | 219.1 | 178 | 178 |
10 | 250 | 273.0 | 216 | 216 |
12 | 300 | 323.8 | 254 | 254 |
14 | 350 | 355.6 | 279 | 279 |
16 | 400 | 406.4 | 305 | 305 |
18 | 450 | 457 | 343 | 343 |
20 | 500 | 508 | 381 | 381 |
22 | 550 | 559 | 419 | 419 |
24 | 600 | 610 | 432 | 432 |
26 | 650 | 660 | 495 | 495 |
28 | 700 | 711 | 521 | 521 |
30 | 750 | 762 | 559 | 559 |
32 | 800 | 813 | 597 | 597 |
34 | 850 | 864 | 635 | 635 |
36 | 900 | 914 | 673 | 673 |
38 | 950 | 965 | 711 | 711 |
40 | 1000 | 1016 | 749 | 749 |
42 | 1050 | 1067 | 762 | 711 |
44 | 1100 | 1118 | 813 | 762 |
46 | 1150 | 1168 | 851 | 800 |
48 | 1200 | 1219 | 889 | 838 |
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.

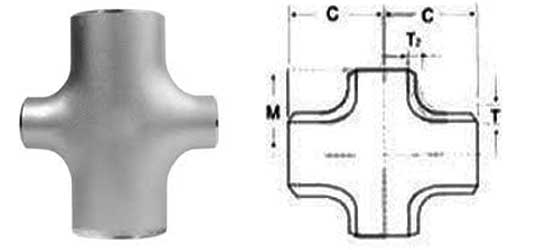

Buttweld Reducing Cross Dimensions
Nominal Diameter | Outside Diameter | Center to End | |||||
D1 | D2 | ||||||
DN | NPS | Series A | Series B | Series A | Series B | C | M |
15×15 | 1/2×1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
15×10 | 1/2×3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
15×8 | 1/2×1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
20×20 | 3/4×3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
20×15 | 3/4×1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
20×10 | 3/4×3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
25×25 | 1×1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
25×20 | 1×3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
25×15 | 1×1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
32×32 | 1.1/4×1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
32×25 | 1.1/4×1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
32×20 | 1.1/4×3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
32×15 | 1.1/4×1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
40×40 | 1.1/2×1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
40×32 | 1.1/2×1.1/4 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
40×25 | 1.1/2×1 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
40×20 | 1.1/2×3/4 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
40×15 | 1.1/2×1/2 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
50×50 | 2×2 | 60.3 | 57 | 60.3 | 57 | 64 | 64 |
50×40 | 2×1.1/2 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
50×32 | 2×1.1/4 | 60.3 | 57 | 42.4 | 38 | 64 | 57 |
50×25 | 2×1 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
50×20 | 2×3/4 | 60.3 | 57 | 26.9 | 25 | 64 | 44 |
65×65 | 2/1/2×2.1/2 | 73.0 | 76 | 73.0 | 76 | 76 | 76 |
65×50 | 2/1/2×2 | 73.0 | 76 | 60.3 | 57 | 76 | 70 |
65×40 | 2/1/2×1.1/2 | 73.0 | 76 | 48.3 | 45 | 76 | 67 |
65×32 | 2/1/2×1.1/4 | 73.0 | 76 | 42.4 | 38 | 76 | 64 |
65×25 | 2/1/2×1 | 73.0 | 76 | 33.7 | 32 | 76 | 57 |
80×80 | 3×3 | 88.9 | 89 | 88.9 | 89 | 86 | 86 |
80×65 | 3×2.1/2 | 88.9 | 89 | 73.0 | 76 | 86 | 83 |
80×50 | 3×2 | 88.9 | 89 | 60.3 | 57 | 86 | 76 |
80×40 | 3×1.1/2 | 88.9 | 89 | 48.3 | 45 | 86 | 73 |
80×32 | 3×1.1/4 | 88.9 | 89 | 42.4 | 38 | 86 | 70 |
90×90 | 3.1/2×3.1/2 | 101.6 | – | 101.6 | – | 95 | 95 |
90×80 | 3.1/2×3 | 101.6 | – | 88.9 | 89 | 95 | 92 |
90×65 | 3.1/2×2.1/2 | 101.6 | – | 73.0 | 76 | 95 | 89 |
90×50 | 3.1/2×2 | 101.6 | – | 60.3 | 57 | 95 | 83 |
90×40 | 3.1/2×1.1/2 | 101.6 | – | 48.3 | 45 | 95 | 79 |
100×100 | 4×4 | 114.3 | 108 | 114.3 | 108 | 105 | 105 |
100×90 | 4×3.1/2 | 114.3 | 108 | 101.6 | – | 105 | 102 |
100×80 | 4×3 | 114.3 | 108 | 88.9 | 89 | 105 | 98 |
100×65 | 4×2.1/2 | 114.3 | 108 | 73.0 | 76 | 105 | 95 |
100×50 | 4×2 | 114.3 | 108 | 60.3 | 57 | 105 | 89 |
100×40 | 4×1.1/2 | 114.3 | 108 | 48.3 | 45 | 105 | 86 |
125×125 | 5×5 | 141.3 | 133 | 141.3 | 133 | 124 | 124 |
125×100 | 5×4 | 141.3 | 133 | 114.3 | 108 | 124 | 117 |
125×90 | 5×3.1/2 | 141.3 | – | 101.6 | – | 124 | 114 |
125×80 | 5×3 | 141.3 | 133 | 88.9 | 89 | 124 | 111 |
125×65 | 5×2.1.2 | 141.3 | 133 | 73.0 | 76 | 124 | 108 |
125×50 | 5×2 | 141.3 | 133 | 60.3 | 57 | 124 | 105 |
150×150 | 6×6 | 168.3 | 159 | 168.3 | 159 | 143 | 143 |
150×125 | 6×5 | 168.3 | 159 | 141.3 | 133 | 143 | 137 |
150×100 | 6×4 | 168.3 | 159 | 114.3 | 108 | 143 | 130 |
150×90 | 6×3.1/2 | 168.3 | – | 101.6 | – | 143 | 127 |
150×80 | 6×3 | 168.3 | 159 | 88.9 | 89 | 143 | 124 |
150×65 | 6×2.1/2 | 168.3 | 159 | 73.0 | 76 | 143 | 121 |
200×200 | 8×8 | 219.1 | 219 | 219.1 | 219 | 178 | 178 |
200×150 | 8×6 | 219.1 | 219 | 168.3 | 159 | 178 | 168 |
200×125 | 8×5 | 219.1 | 219 | 141.4 | 133 | 178 | 162 |
200×100 | 8×4 | 219.1 | 219 | 114.3 | 108 | 178 | 156 |
200×90 | 8×3.1/2 | 219.1 | – | 101.6 | – | 178 | 152 |
250×250 | 10×10 | 273.0 | 273 | 273.0 | 273 | 216 | 216 |
250×200 | 10×8 | 273.0 | 273 | 219.1 | 219 | 216 | 203 |
250×150 | 10×6 | 273.0 | 273 | 168.3 | 159 | 216 | 194 |
250×125 | 10×5 | 273.0 | 273 | 141.3 | 133 | 216 | 191 |
250×100 | 10×4 | 273.0 | 273 | 114.3 | 108 | 216 | 184 |
300×300 | 12×12 | 323.9 | 325 | 323.9 | 325 | 254 | 254 |
300×250 | 12×10 | 323.9 | 325 | 273.0 | 273 | 254 | 241 |
300×200 | 12×8 | 323.9 | 325 | 219.1 | 219 | 254 | 229 |
300×150 | 12×6 | 323.9 | 325 | 168.3 | 159 | 254 | 219 |
300×125 | 12×5 | 323.9 | 325 | 141.3 | 133 | 254 | 216 |
350×350 | 14×14 | 355.6 | 377 | 355.6 | 377 | 279 | 279 |
350×300 | 14×12 | 355.6 | 377 | 323.9 | 325 | 279 | 270 |
350×250 | 14×10 | 355.6 | 377 | 273.0 | 273 | 279 | 257 |
350×200 | 14×8 | 355.6 | 377 | 219.1 | 219 | 279 | 248 |
350×150 | 14×6 | 355.6 | 377 | 168.3 | 159 | 279 | 238 |
400×400 | 16×16 | 406.4 | 426 | 406.4 | 426 | 305 | 305 |
400×350 | 16×14 | 406.4 | 426 | 355.6 | 377 | 305 | 305 |
400×300 | 16×12 | 406.4 | 426 | 323.9 | 325 | 305 | 295 |
400×250 | 16×10 | 406.4 | 426 | 273.0 | 273 | 305 | 283 |
400×200 | 16×8 | 406.4 | 426 | 219.1 | 219 | 305 | 273 |
400×150 | 16×6 | 406.4 | 426 | 168.3 | 159 | 305 | 264 |
450×450 | 18×18 | 457 | 480 | 457 | 480 | 343 | 343 |
450×400 | 18×16 | 457 | 480 | 406.4 | 426 | 343 | 330 |
450×350 | 18×14 | 457 | 480 | 355.6 | 377 | 343 | 330 |
450×300 | 18×12 | 457 | 480 | 323.9 | 325 | 343 | 321 |
450×250 | 18×10 | 457 | 480 | 273.0 | 273 | 343 | 308 |
450×200 | 18×8 | 457 | 480 | 219.1 | 219 | 343 | 298 |
500×500 | 20×20 | 508 | 530 | 508 | 530 | 381 | 381 |
500×450 | 20×20 | 508 | 530 | 457 | 480 | 381 | 368 |
500×400 | 20×20 | 508 | 530 | 406.4 | 426 | 381 | 356 |
500×350 | 20×20 | 508 | 530 | 355.6 | 377 | 381 | 356 |
500×300 | 20×20 | 508 | 530 | 323.9 | 325 | 381 | 346 |
500×250 | 20×20 | 508 | 530 | 273.0 | 273 | 381 | 333 |
500×200 | 20×20 | 508 | 530 | 219.1 | 219 | 381 | 324 |
ANSI/ASME B16.9 BUTTWELD EQUAL CROSS DIMENSIONS
Buttweld Cross Dimensions Chart
Nominal Pipe Size (NPS) | DN | Outside Diameter at Bevel | Center- to-End | |
Run.C | Outlet. M[Notes(1) and (2)] | |||
1/2 | 15 | 21.3 | 25 | 25 |
3/4 | 20 | 26.7 | 29 | 29 |
1 | 25 | 33.4 | 38 | 38 |
1-1/4 | 32 | 42.2 | 48 | 48 |
1-1/2 | 40 | 48.3 | 57 | 57 |
2 | 50 | 60.3 | 64 | 64 |
2-1/2 | 65 | 73.0 | 76 | 76 |
3 | 80 | 88.9 | 86 | 86 |
3-1/2 | 90 | 101.6 | 95 | 95 |
4 | 100 | 114.3 | 105 | 105 |
5 | 125 | 141.3 | 124 | 124 |
6 | 150 | 168.3 | 143 | 143 |
8 | 200 | 219.1 | 178 | 178 |
10 | 250 | 273.0 | 216 | 216 |
12 | 300 | 323.8 | 254 | 254 |
14 | 350 | 355.6 | 279 | 279 |
16 | 400 | 406.4 | 305 | 305 |
18 | 450 | 457 | 343 | 343 |
20 | 500 | 508 | 381 | 381 |
22 | 550 | 559 | 419 | 419 |
24 | 600 | 610 | 432 | 432 |
26 | 650 | 660 | 495 | 495 |
28 | 700 | 711 | 521 | 521 |
30 | 750 | 762 | 559 | 559 |
32 | 800 | 813 | 597 | 597 |
34 | 850 | 864 | 635 | 635 |
36 | 900 | 914 | 673 | 673 |
38 | 950 | 965 | 711 | 711 |
40 | 1000 | 1016 | 749 | 749 |
42 | 1050 | 1067 | 762 | 711 |
44 | 1100 | 1118 | 813 | 762 |
46 | 1150 | 1168 | 851 | 800 |
48 | 1200 | 1219 | 889 | 838 |
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
Buttweld Reducing Cross Dimensions
Nominal Diameter | Outside Diameter | Center to End | |||||
D1 | D2 | ||||||
DN | NPS | Series A | Series B | Series A | Series B | C | M |
15×15 | 1/2×1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
15×10 | 1/2×3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
15×8 | 1/2×1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
20×20 | 3/4×3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
20×15 | 3/4×1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
20×10 | 3/4×3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
25×25 | 1×1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
25×20 | 1×3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
25×15 | 1×1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
32×32 | 1.1/4×1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
32×25 | 1.1/4×1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
32×20 | 1.1/4×3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
32×15 | 1.1/4×1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
40×40 | 1.1/2×1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
40×32 | 1.1/2×1.1/4 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
40×25 | 1.1/2×1 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
40×20 | 1.1/2×3/4 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
40×15 | 1.1/2×1/2 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
50×50 | 2×2 | 60.3 | 57 | 60.3 | 57 | 64 | 64 |
50×40 | 2×1.1/2 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
50×32 | 2×1.1/4 | 60.3 | 57 | 42.4 | 38 | 64 | 57 |
50×25 | 2×1 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
50×20 | 2×3/4 | 60.3 | 57 | 26.9 | 25 | 64 | 44 |
65×65 | 2/1/2×2.1/2 | 73.0 | 76 | 73.0 | 76 | 76 | 76 |
65×50 | 2/1/2×2 | 73.0 | 76 | 60.3 | 57 | 76 | 70 |
65×40 | 2/1/2×1.1/2 | 73.0 | 76 | 48.3 | 45 | 76 | 67 |
65×32 | 2/1/2×1.1/4 | 73.0 | 76 | 42.4 | 38 | 76 | 64 |
65×25 | 2/1/2×1 | 73.0 | 76 | 33.7 | 32 | 76 | 57 |
80×80 | 3×3 | 88.9 | 89 | 88.9 | 89 | 86 | 86 |
80×65 | 3×2.1/2 | 88.9 | 89 | 73.0 | 76 | 86 | 83 |
80×50 | 3×2 | 88.9 | 89 | 60.3 | 57 | 86 | 76 |
80×40 | 3×1.1/2 | 88.9 | 89 | 48.3 | 45 | 86 | 73 |
80×32 | 3×1.1/4 | 88.9 | 89 | 42.4 | 38 | 86 | 70 |
90×90 | 3.1/2×3.1/2 | 101.6 | – | 101.6 | – | 95 | 95 |
90×80 | 3.1/2×3 | 101.6 | – | 88.9 | 89 | 95 | 92 |
90×65 | 3.1/2×2.1/2 | 101.6 | – | 73.0 | 76 | 95 | 89 |
90×50 | 3.1/2×2 | 101.6 | – | 60.3 | 57 | 95 | 83 |
90×40 | 3.1/2×1.1/2 | 101.6 | – | 48.3 | 45 | 95 | 79 |
100×100 | 4×4 | 114.3 | 108 | 114.3 | 108 | 105 | 105 |
100×90 | 4×3.1/2 | 114.3 | 108 | 101.6 | – | 105 | 102 |
100×80 | 4×3 | 114.3 | 108 | 88.9 | 89 | 105 | 98 |
100×65 | 4×2.1/2 | 114.3 | 108 | 73.0 | 76 | 105 | 95 |
100×50 | 4×2 | 114.3 | 108 | 60.3 | 57 | 105 | 89 |
100×40 | 4×1.1/2 | 114.3 | 108 | 48.3 | 45 | 105 | 86 |
125×125 | 5×5 | 141.3 | 133 | 141.3 | 133 | 124 | 124 |
125×100 | 5×4 | 141.3 | 133 | 114.3 | 108 | 124 | 117 |
125×90 | 5×3.1/2 | 141.3 | – | 101.6 | – | 124 | 114 |
125×80 | 5×3 | 141.3 | 133 | 88.9 | 89 | 124 | 111 |
125×65 | 5×2.1.2 | 141.3 | 133 | 73.0 | 76 | 124 | 108 |
125×50 | 5×2 | 141.3 | 133 | 60.3 | 57 | 124 | 105 |
150×150 | 6×6 | 168.3 | 159 | 168.3 | 159 | 143 | 143 |
150×125 | 6×5 | 168.3 | 159 | 141.3 | 133 | 143 | 137 |
150×100 | 6×4 | 168.3 | 159 | 114.3 | 108 | 143 | 130 |
150×90 | 6×3.1/2 | 168.3 | – | 101.6 | – | 143 | 127 |
150×80 | 6×3 | 168.3 | 159 | 88.9 | 89 | 143 | 124 |
150×65 | 6×2.1/2 | 168.3 | 159 | 73.0 | 76 | 143 | 121 |
200×200 | 8×8 | 219.1 | 219 | 219.1 | 219 | 178 | 178 |
200×150 | 8×6 | 219.1 | 219 | 168.3 | 159 | 178 | 168 |
200×125 | 8×5 | 219.1 | 219 | 141.4 | 133 | 178 | 162 |
200×100 | 8×4 | 219.1 | 219 | 114.3 | 108 | 178 | 156 |
200×90 | 8×3.1/2 | 219.1 | – | 101.6 | – | 178 | 152 |
250×250 | 10×10 | 273.0 | 273 | 273.0 | 273 | 216 | 216 |
250×200 | 10×8 | 273.0 | 273 | 219.1 | 219 | 216 | 203 |
250×150 | 10×6 | 273.0 | 273 | 168.3 | 159 | 216 | 194 |
250×125 | 10×5 | 273.0 | 273 | 141.3 | 133 | 216 | 191 |
250×100 | 10×4 | 273.0 | 273 | 114.3 | 108 | 216 | 184 |
300×300 | 12×12 | 323.9 | 325 | 323.9 | 325 | 254 | 254 |
300×250 | 12×10 | 323.9 | 325 | 273.0 | 273 | 254 | 241 |
300×200 | 12×8 | 323.9 | 325 | 219.1 | 219 | 254 | 229 |
300×150 | 12×6 | 323.9 | 325 | 168.3 | 159 | 254 | 219 |
300×125 | 12×5 | 323.9 | 325 | 141.3 | 133 | 254 | 216 |
350×350 | 14×14 | 355.6 | 377 | 355.6 | 377 | 279 | 279 |
350×300 | 14×12 | 355.6 | 377 | 323.9 | 325 | 279 | 270 |
350×250 | 14×10 | 355.6 | 377 | 273.0 | 273 | 279 | 257 |
350×200 | 14×8 | 355.6 | 377 | 219.1 | 219 | 279 | 248 |
350×150 | 14×6 | 355.6 | 377 | 168.3 | 159 | 279 | 238 |
400×400 | 16×16 | 406.4 | 426 | 406.4 | 426 | 305 | 305 |
400×350 | 16×14 | 406.4 | 426 | 355.6 | 377 | 305 | 305 |
400×300 | 16×12 | 406.4 | 426 | 323.9 | 325 | 305 | 295 |
400×250 | 16×10 | 406.4 | 426 | 273.0 | 273 | 305 | 283 |
400×200 | 16×8 | 406.4 | 426 | 219.1 | 219 | 305 | 273 |
400×150 | 16×6 | 406.4 | 426 | 168.3 | 159 | 305 | 264 |
450×450 | 18×18 | 457 | 480 | 457 | 480 | 343 | 343 |
450×400 | 18×16 | 457 | 480 | 406.4 | 426 | 343 | 330 |
450×350 | 18×14 | 457 | 480 | 355.6 | 377 | 343 | 330 |
450×300 | 18×12 | 457 | 480 | 323.9 | 325 | 343 | 321 |
450×250 | 18×10 | 457 | 480 | 273.0 | 273 | 343 | 308 |
450×200 | 18×8 | 457 | 480 | 219.1 | 219 | 343 | 298 |
500×500 | 20×20 | 508 | 530 | 508 | 530 | 381 | 381 |
500×450 | 20×20 | 508 | 530 | 457 | 480 | 381 | 368 |
500×400 | 20×20 | 508 | 530 | 406.4 | 426 | 381 | 356 |
500×350 | 20×20 | 508 | 530 | 355.6 | 377 | 381 | 356 |
500×300 | 20×20 | 508 | 530 | 323.9 | 325 | 381 | 346 |
500×250 | 20×20 | 508 | 530 | 273.0 | 273 | 381 | 333 |
500×200 | 20×20 | 508 | 530 | 219.1 | 219 | 381 | 324 |
Package in Pallet or Plywood box
Package in Pallet or Plywood box
