Monel 400 Coil

Monel 400® plate is available up 3" thick. Monel 400® bar is available in wrought bar up to 11" diameter and larger sizes and shapes may be forged to order. Monel 400® seamless pipe is available up to 8" NB. Larger sizes are available in welded construction (100% X-ray) and can also be fabricated to order. Monel 400® tubing is available up 3".
Availability:
Quantity:
  • 400

Monel 400 Coil

Monel 400, Alloy 400; Nickel 400; Nickelvac 400; Nicorros 400.

Monel® Alloy nickel-copper alloy 400 (UNS N04400; W.Nr. 2.4360 and 2.4361) is a solid-solution alloy that can be hardened only by cold working. It has high strength and toughness over a wide temperature range  and excellent resistance to many corrosive environments.


Available Product Forms:

Pipe, tube, sheet, strip, plate, round bar, flat bar, forging stock, hexagon, wire


Plate, Sheet, and Strip: - BS3072NA13 (Sheet and Plate), BS3073NA13 (Strip), ASTM B 127, ASME SB 127 (Plate,Sheet, and Strip), SAE AMS 4544 (Sheet, Strip, and Plate),
DIN 17750 (Plate, Strip and Sheet), QQ-N-281 (Plate, Sheet, Strip, Bar, Rod, Wire, and Forgings)

Bar, Rod, Wire, and Forgings - BS3075NA13 (Wire), BS3076NA13 (Bar), ASTM B 164 (Rod, Bar, and Wire), ASTM B 564 (Forgings), ASME SB 164 (Rod, Bar, and Wire), ASME SB 564 (Forgings), AECMA PrEN 2305 (Wire for Rivets), SAE AMS 4675 (Bars and Forgings),SAE AMS 4730 (Wire), SAE AMS 4731 (Wire and Ribbon), DIN 17752 (Rod and Bar), DIN 17753 (Wire), DIN 17754 (Forgings), VdTÜV 263 (Sheet, Plate, Bar, and Tubing), QQ-N-281 (Plate, Sheet, Strip, Bar, Rod, Wire, and Forgings)

Pipe and Tube - BS3074NA13 (Tube), ASTM B 163 (Condenser and Heat Exchanger Tube), ASTM B 165 (Seamless Pipe and Tube), ASTM B 725 (Welded Pipe), ASTM B 730 (Welded Tube), ASTM B 751 (Welded Tube), ASTM B 775 (Welded Pipe), ASTM B 829 (Seamless Pipe and Tube), ASME SB 163 (Condenser and Heat Exchanger Tubes), ASME SB 165 (Seamless Pipe and Tube), ASME SB 725 (Welded Pipe), ASME SB 730 (Welded Tube), ASME SB 751 (Seamless and Welded Tube), ASME SB 775 (Seamless and Welded Pipe), ASME SB 829 (Seamless Pipe and Tube), SAE AMS 4574 (Seamless Tubing), DIN 17751 (Pipe and Tube), VdTÜV 263 (Sheet, Plate, Bar, and Tubing),

Welding Products - MONEL Filler Metal 60-AWS A5.14/ERNiCu-7; MONEL Welding Electrode 190-AWS A5.11/ENiCu-7.

Other Products - ASTM B 366, ASME SB 366 (Welded Fittings), SAE AMS 7233 (Rivets), DIN 17743 (Chemical Composition)


We are ISO 9001:2008 certified company with more than 20 years steel experience & have exported to countries such as Argentina, Australia, Canada , Chile, Mexico , Colombia, Denark , Norway, Finland, Germany, UAE, France, Vietnam, Brazil, America, Hungary, Sri Lanka, Malaysia, Saudi Arabia, Thailand, Indonesia, India, Iraq, Kuwait , Isreal, Lebanon,Morocco, Iran, Taiwan, Singapore, Qatar, Japan, Spain, Italy, Peru, South Korea, Turkey,Russia ,Philippines, Rome, England etc.



If there is any questions , pls do not hesitate to contact us !

Mr.Jim

Mobile/Wechat  : +86 15902911689

Email : info@yklsteel.com





Chemical Composition :

Limiting Chemical Composition, %  by Weight

Nickel (plus Cobalt).....................................................63.0 min.

Carbon..........................................................................0.3max.

Manganese...................................................................2.0 max.

Iron................................................................................2.5max.

Sulfur........................................................................0.024max.

Silicon...........................................................................0.5max.

Copper......................................................................28.0 -34.0

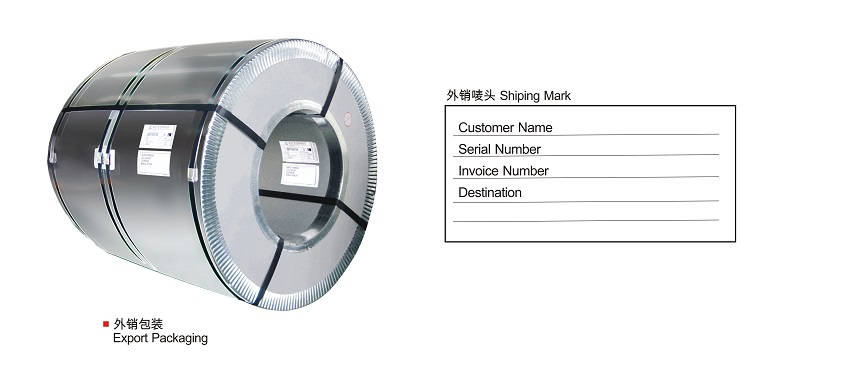

钢卷包装

Monel 400 Coil Applications :

  • Marine valves, ship building, propeller shafts

  • Chemical and hydrocarbon treatment apparatus, pumps

  • Crude oil distillation systems, boiler feeder, tanks

  • Electrical and electronic parts

  • Architectural components in institutional buildings

  • It is significant for industries such as marine, oil processing and chemical plants

  • Suitable for fluorine service

  • Used in pickling solutions and oil refining acid sludge
